Purifier VCR1/4 Flow 6SLPM, Max. Flow 30SLPM, Max. Press. 17Bar
物料號 94040120
Purifier VCR1/4 Flow 6SLPM, Max. Flow 30SLPM, Max. Press. 17Bar
物料號 94040120
可以迅速提供給已注册用(yong)戶
MicroTorr purifiers represent a comprehensive and dependable approach to point-of-use (POU) gas purification systems, addressing the critical need for contaminant removal at application sites rather than relying solely on centralized purification infrastructure.
Applicaties
- Weld gas/purge gas
- Pharmaceutical production
- Semiconductor process equipment
- Analytical equipment
- Annealing cover gas
- LED manufacturing
- Flat panel display production
- Solar and energy
- Other emerging technologies
Downloads
Point of use purifiers datasheet2022年9月9日, 09:57 / 508.31 kB
Point of use purifiers brochure2022年9月9日, 09:57 / 1.43 MB
Applicaties
- Weld gas/purge gas
- Pharmaceutical production
- Semiconductor process equipment
- Analytical equipment
- Annealing cover gas
- LED manufacturing
- Flat panel display production
- Solar and energy
- Other emerging technologies
Downloads
Point of use purifiers datasheet2022年9月9日, 09:57 / 508.31 kB
Point of use purifiers brochure2022年9月9日, 09:57 / 1.43 MB
Article
94040120
Header [Brand]
Purifier UHP
Description
Purifier VCR1/4 Flow 6SLPM, Max. Flow 30SLPM, Max. Press. 17Bar
Manufacturer
Nupure
Manufacturer code
00800M-A-VCR-N2-PF
Material
SS 316L
Gas(es) purified
CDA, N2
Impurities removed
H2O< 1ppb
Regenerable
Yes
Max. operating pressure
17 bar
Leak rating
10-9 mbar · l/s
Max. temperature
Max. 65 °C
Maximum Flow
30 SLPM
Nominal Flow
6 SLPM
Polishing
Electro polishing
Surface finish
<10 µm Ra
Fittings
Face seal male 1/4
0,003um particle filtration:
yes
增值税常規税率
21%

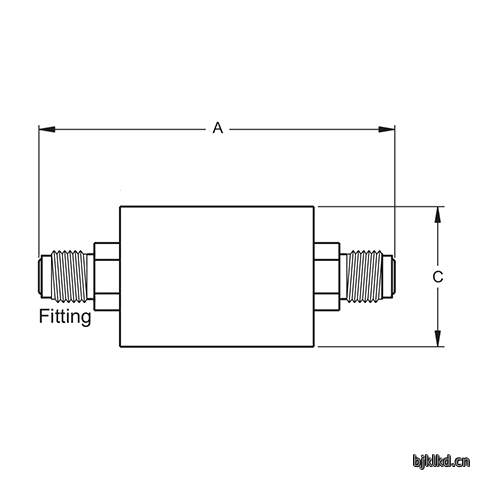

C
50,8 mm
A
160 mm
