Gas Purifier FSM1/4 Model 800M For N2
物料號 94040003
Gas Purifier FSM1/4 Model 800M For N2
物料號 94040003
可以迅速提供(gong)給已注册(ce)用戶
MicroTorr purifiers function as comprehensive point-of-use gas purification systems designed to address the demanding requirements of laboratory and industrial process environments where gas purity directly impacts experimental outcomes and production quality.
Applicaties
- Weld gas/purge gas
- Pharmaceutical production
- Semiconductor process equipment
- Analytical equipment
- Annealing cover gas
- LED manufacturing
- Flat panel display production
- Solar and energy
- Other emerging technologies
Downloads
Point of use purifiers datasheet2022年9月9日, 09:57 / 508.31 kB
Point of use purifiers brochure2022年9月9日, 09:57 / 1.43 MB
Applicaties
- Weld gas/purge gas
- Pharmaceutical production
- Semiconductor process equipment
- Analytical equipment
- Annealing cover gas
- LED manufacturing
- Flat panel display production
- Solar and energy
- Other emerging technologies
Downloads
Point of use purifiers datasheet2022年9月9日, 09:57 / 508.31 kB
Point of use purifiers brochure2022年9月9日, 09:57 / 1.43 MB
Article
94040003
Header [Brand]
Purifier UHP
Description
Gas Purifier FSM1/4 Model 800M For N2
Manufacturer
Nupure
Manufacturer code
00800M-A-VCR-N2-PF
Vessel construction (material)
SS 316L
Gas(es) purified
Ar
He
Kr
Ne
Xe
N2
H2
O2
D2
N2O
NO
CF4
CDA
He
Kr
Ne
Xe
N2
H2
O2
D2
N2O
NO
CF4
CDA
Impurities removed
H2O, CO2 <100ppt; Volatile acids, Organics, Refractory compounds to <1ppt; Volatile bases <5ppt; Metals <1ppb.
Regenerable
Yes
Max. operating pressure
69 bar
Leak rating
10-9 mbar · l/s
Max. temperature
Max. 65 °C
Maximum Flow
50 SLPM
Nominal Flow
5 SLPM
Polishing
Electro polishing
Surface finish
<10 µm Ra
Fittings
Face seal male 1/4
0,003um particle filtration:
yes
增值税常規税率
21%

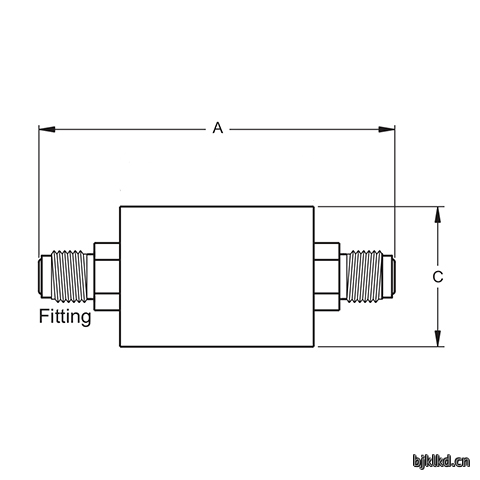

C
50,8 mm
A
208,3 mm
