Gas Purifier 1/4 Tube OA Model 40PF For N2/CDA
物料號 94040001
Gas Purifier 1/4 Tube OA Model 40PF For N2/CDA
物料號 94040001
可以迅速提供給(gei)已注册用戶(hu)
MicroTorr purifiers are the most complete and reliable solution for point-of-use (POU) gas purification. These purifiers give an uncompromising consistency in the quality of your process, provide a low pressure drop and guarantee a long life.
Applicaties
- Weld gas/purge gas
- Pharmaceutical production
- Semiconductor process equipment
- Analytical equipment
- Annealing cover gas
- LED manufacturing
- Flat panel display production
- Solar and energy
- Other emerging technologies
Downloads
Point of use purifiers datasheet2022年9月9日, 09:57 / 508.31 kB
Point of use purifiers brochure2022年9月9日, 09:57 / 1.43 MB
Applicaties
- Weld gas/purge gas
- Pharmaceutical production
- Semiconductor process equipment
- Analytical equipment
- Annealing cover gas
- LED manufacturing
- Flat panel display production
- Solar and energy
- Other emerging technologies
Downloads
Point of use purifiers datasheet2022年9月9日, 09:57 / 508.31 kB
Point of use purifiers brochure2022年9月9日, 09:57 / 1.43 MB
Article
94040001
Header [Brand]
Purifier UHP
Description
Gas Purifier 1/4 Tube OA Model 40PF For N2/CDA
Vessel construction (material)
SS 316L
Gas(es) purified
CDA
Inerts (e.g. Nitrogen or Helium), O2
O2 / Inert gas mixtures
Inerts (e.g. Nitrogen or Helium), O2
O2 / Inert gas mixtures
Impurities removed
acid gases, alcohols, amines, ammonia, CO/CO2, all hydrocarbons
H2S
H2O
NOx
SO2
SOx
siloxanes and toluene; <0,5 ppb
H2S
H2O
NOx
SO2
SOx
siloxanes and toluene; <0,5 ppb
Regenerable
Yes
Max. operating pressure
69 bar
Leak rating
< 2 x 10-9 atm cc/sec He
Maximum Flow
4 SLPM
Polishing
Electro polishing
Surface finish
< 0,25 µm Ra
Fittings
Face seal male 1/4
0,003um particle filtration:
yes
Operating temperature
Room temperature
增值税常規税率
21%

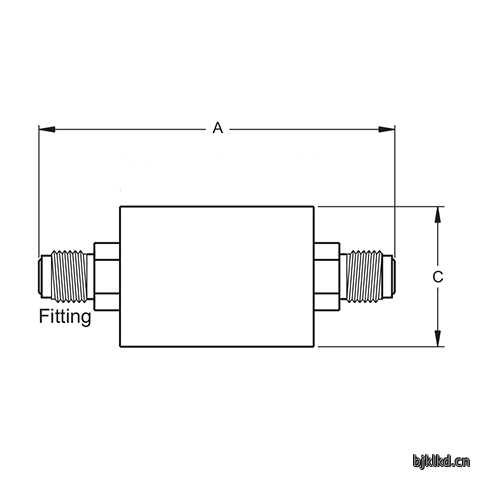

C
25 mm
A
84 mm
