Diaphragm Press. Regulator FSM/FSF 1/4 SS316L PCTF Ra
物料號 92000926
Diaphragm Press. Regulator FSM/FSF 1/4 SS316L PCTF Ra
物料號 92000926
可以(yi)迅速(su)提供給已注册用戶
只有(you)已注册用戶可以(yi)提供
UHP diaphragm pressure regulators valves are available in various configurations and versions for usage in (cleanroom) utility and equipment manufacturing. The SS316L(VAR) pressure regulators have a polished internal surface finish, to minimize the forming of particles.
They are assembled and tested in a cleanroom environment.The valves are available with manual actuation for high and low pressures. The pressure regulators can be provided in 2/3/4/5 or 6 port configurations with the associated 1/4" face seal connections.
cv-calculator
CV計算器
Specials
Info
Please contact us for more information about the special versions.
cv-calculator
CV計算器
Specials
Info
Please contact us for more information about the special versions.
Article
92000926
Header [Brand]
UHP/HP Diaphragm Pressure Regulator
Description
Diaphragm Press. Regulator FSM/FSF 1/4 SS316L PCTF Ra<0,4um SIR100S 2V1 I/K 2B A:V1/4M B:V1/4F
Manufacturer
Rotarex - Selfa
Manufacturer code
SIR100S 2V1 I/K 2b A:V1/4M B:V1/4F
Material body
SS 316L
Material handle
Extruded plastic
Material seat
PCTFE (Kel-F)
Material bonnet
Brass nickel plated
Material poppet
SS 316L
Material diaphragm
Hastelloy®
Inlet pressure
50 bar
Outlet pressure
2 bar
He leak rate
Up to 10-9 mbar · l/s
Flow coefficient
0,2 Cv
Temperature range
-20 °C to 65 °C
Valve Actuation
Manually

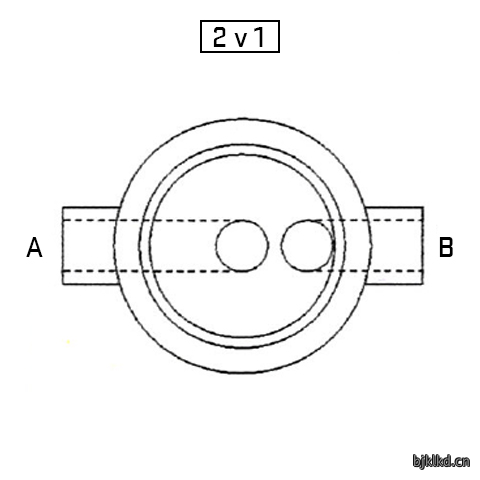

Port configurations
2 ports in line
Connection type
Face seal male/Face seal female
Polishing
Mechanical polishing
Surface finish
<0,4µm Ra
增值税常規税率
21%
C
Male face seal 1/4
C1
Female face seal 1/4

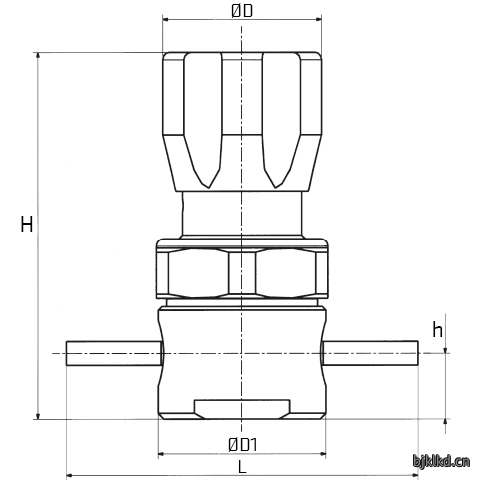

Ø D
44,5 mm
Ø D1
45 mm
L
94 mm

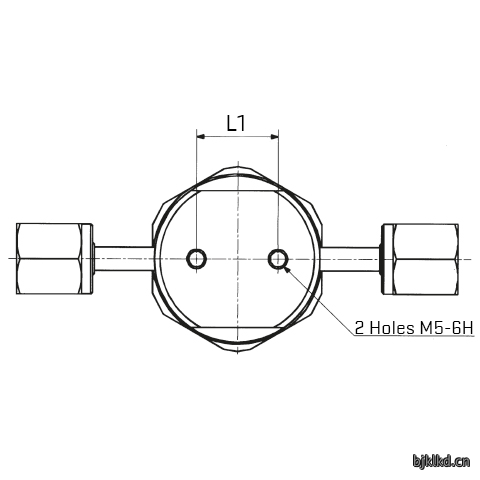

L1
22,3 mm
L2
47 mm
H
99 mm
h
17,5 mm
Remarks
Images shown can slightly deviate from the part supplied depending on the actual configuration/options.
