SI15V 3V4 I/FPM 8B A/C:V1/2FB:V1/4
物料號 92000197
SI15V 3V4 I/FPM 8B A/C:V1/2FB:V1/4
物料號 92000197
可以迅速提供給已注册用戶
UHP diaphragm pressure regulators valves are available in various configurations and versions for usage in (cleanroom) utility and equipment manufacturing. The SS316L(VAR) pressure regulators have a polished internal surface finish, to minimize the forming of particles.
They are assembled and tested in a cleanroom environment.The valves are available with manual actuation for high and low pressures. The pressure regulators can be provided in 2/3/4/5 or 6 port configurations with the associated 1/4" face seal connections.
cv-calculator
CV計算器
Specials
Info
Please contact us for more information about the special versions.
cv-calculator
CV計算器
Specials
Info
Please contact us for more information about the special versions.
Article
92000197
Header [Brand]
UHP/HP High Flow Diaphragm Pressure Regulator
Manufacturer
Rotarex - Selfa
Manufacturer code
SI15V 3V4 I/FPM 8B A/C:V1/2FB:V1/4
Material body
SS 316L
Material handle
Extruded plastic
Material seat
FPM
Material bonnet
Brass nickel plated
Material poppet
SS 316L
Material diaphragm
SS 304
Inlet pressure
25 bar
Outlet pressure
8 bar
He leak rate
Up to 10-9 mbar · l/s
Flow rate
840 SLPM
Temperature range
-20 °C to 60 °C
Valve Actuation
Manually
Port configurations

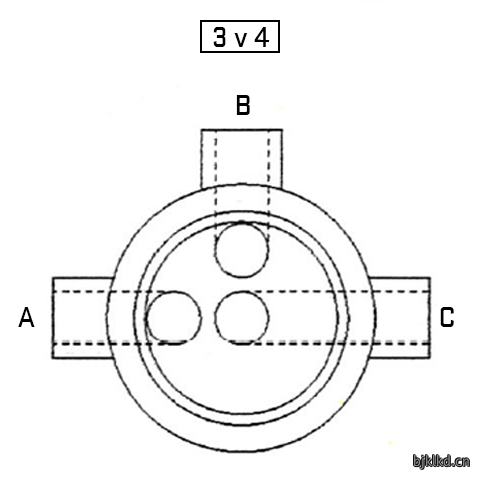

3 port v4 (see picture)
Connection type
Face seal female/Face seal female/Face seal female
Polishing
Electro polishing
Surface finish
<0,25µm Ra
增值税常規税率
21%
C
Female face seal 1/2
C1
Female face seal 1/4
C2
Female face seal 1/2

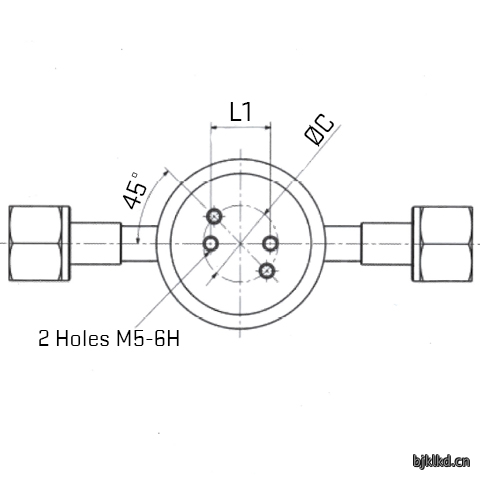

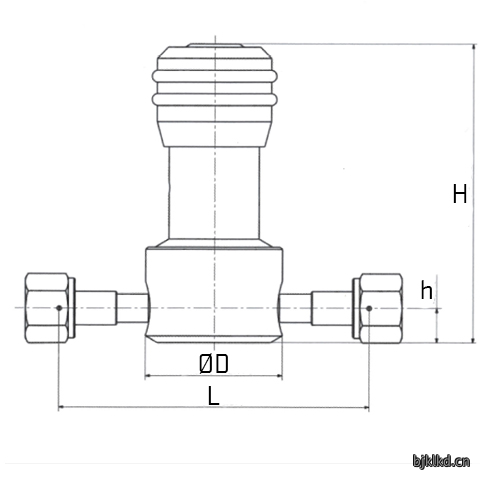

c
28 mm
Ø D
62 mm
L
140 mm
L1
22 mm
L2
70 mm
H
137 mm
h
15,5 mm
Remarks
Images shown can slightly deviate from the part supplied depending on the actual configuration/options.
