Purifier UHP FSM1/4 SS316L Oxygen Max. Inlet 250PSIG Max. Flow 4,5 SLPM

物料號 31395430

Purifier UHP FSM1/4 SS316L Oxygen Max. Inlet 250PSIG Max. Flow 4,5 SLPM

Purifier UHP FSM1/4 SS316L Oxygen Max. Inlet 250PSIG Max. Flow 4,5 SLPM

物料號 31395430

可以迅速提供(gong)給已注册用戶
描述
一般信息
技術規格
尺寸
備注
描述

MicroTorr purifiers are the most complete and reliable solution for point-of-use (POU) gas purification. These purifiers give an uncompromising consistency in the quality of your process, provide a low pressure drop and guarantee a long life.

一般信息
Applicaties
  • Weld gas/purge gas
  • Pharmaceutical production
  • Semiconductor process equipment
  • Analytical equipment
  • Annealing cover gas
  • LED manufacturing
  • Flat panel display production
  • Solar and energy
  • Other emerging technologies
Downloads
Point of use purifiers datasheet2022年9月9日, 09:57 / 508.31 kB
Point of use purifiers brochure2022年9月9日, 09:57 / 1.43 MB
Applicaties
  • Weld gas/purge gas
  • Pharmaceutical production
  • Semiconductor process equipment
  • Analytical equipment
  • Annealing cover gas
  • LED manufacturing
  • Flat panel display production
  • Solar and energy
  • Other emerging technologies
Downloads
Point of use purifiers datasheet2022年9月9日, 09:57 / 508.31 kB
Point of use purifiers brochure2022年9月9日, 09:57 / 1.43 MB
技術規格
Article
31395430
Header [Brand]
Purifier UHP
Description
Purifier UHP FSM1/4 SS316L Oxygen Max. Inlet 250PSIG Max. Flow 4,5 SLPM
Packaging specification
Cleaned and double-packed
Manufacturer
Mott
Manufacturer code
050OX-V04-OXY-CR-TA
Vessel construction (material)
SS 316L
Gas(es) purified
CDA
O2
Impurities removed
CO2
H20
NMHC
Animens
NOx
Particle filtration
0,0015 μm
Inlet particle filtration
1 µm
Outlet purity
< 100 PPT
Regenerable
Yes
Maximum Pressure Drop
<2 psid
Max. operating pressure
17,24 Bar
Leak rating
10-9 mbar · l/s
Max. temperature
Max. 50 °C
Maximum Flow
4,5 SLPM
Average Flow
0,3 SLPM
Polishing
Electropolishing
Surface finish
<10 µm Ra
增值税常規税率
21%

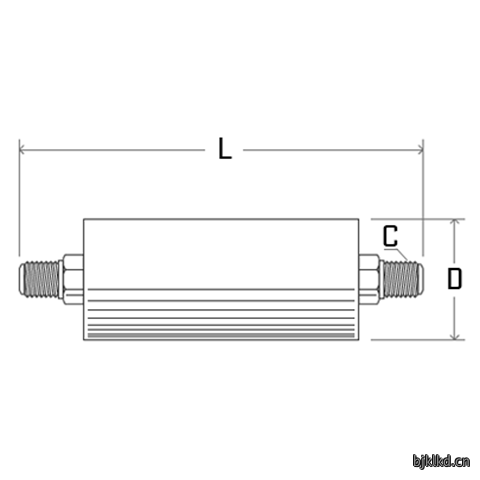

尺寸
C
Face Seal male 1/4
Ø D
25,4 mm
L
84,0 mm
備注
Remarks
Optional: 0.003 µm filtration
inlet/outlet fittings and valves
Sub-micron particle filtration
Face-to-face matching
