Purifier UHP FSM1/4 SS316L Inerts Max. Inlet 250PSIG Max. Flow 4,5SLPM
物料號 31395410
Purifier UHP FSM1/4 SS316L Inerts Max. Inlet 250PSIG Max. Flow 4,5SLPM
物料號 31395410
可以迅(xun)速提(ti)供給已注册用戶
MicroTorr purifiers represent a comprehensive system for point-of-use gas purification applications across laboratory, semiconductor, and analytical instrumentation environments where gas purity directly impacts experimental outcomes and equipment performance.
Applicaties
- Weld gas/purge gas
- Pharmaceutical production
- Semiconductor process equipment
- Analytical equipment
- Annealing cover gas
- LED manufacturing
- Flat panel display production
- Solar and energy
- Other emerging technologies
Downloads
Point of use purifiers datasheet2022年9月9日, 09:57 / 508.31 kB
Point of use purifiers brochure2022年9月9日, 09:57 / 1.43 MB
Applicaties
- Weld gas/purge gas
- Pharmaceutical production
- Semiconductor process equipment
- Analytical equipment
- Annealing cover gas
- LED manufacturing
- Flat panel display production
- Solar and energy
- Other emerging technologies
Downloads
Point of use purifiers datasheet2022年9月9日, 09:57 / 508.31 kB
Point of use purifiers brochure2022年9月9日, 09:57 / 1.43 MB
Article
31395410
Header [Brand]
Purifier UHP
Description
Purifier UHP FSM1/4 SS316L Inerts Max. Inlet 250PSIG Max. Flow 4,5SLPM
Packaging specification
Cleaned and double-packed
Manufacturer
Mott
Manufacturer code
050C-V04-INERT-CR-TA
Vessel construction (material)
SS 316L
Gas(es) purified
Ar
He
Kr
Ne
Xe
N2
He
Kr
Ne
Xe
N2
Impurities removed
CO
CO2
H2
H20
NMHC
O2
CO2
H2
H20
NMHC
O2
Particle filtration
0,0015 μm
Inlet particle filtration
1 µm
Outlet purity
< 100 PPT
Regenerable
Yes
Maximum Pressure Drop
<2 psid
Max. operating pressure
17,24 Bar
Leak rating
10-9 mbar · l/s
Max. temperature
Max. 50 °C
Maximum Flow
1,0 SLPM
Average Flow
0,3 SLPM
Polishing
Electropolishing
Surface finish
<10 µm Ra
增值税常規税率
21%

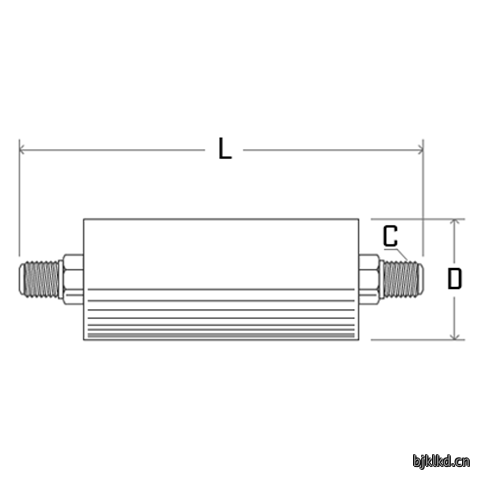

C
Face Seal male 1/4
Ø D
25,4 mm
L
84,0 mm
Remarks
Optional: 0.003 µm filtration
inlet/outlet fittings and valves
Sub-micron particle filtration
Face-to-face matching
inlet/outlet fittings and valves
Sub-micron particle filtration
Face-to-face matching
Remarks
Available with adsorber for moisture concentrations at the feed line >10 ppm
Remarks
Available with adsorber for moisture concentrations at the feed line >10 ppm
